When it comes to air conditioning systems, the condenser fan motor is an essential component that helps to cool the refrigerant in the system. It is responsible for drawing air over the condenser coils, which in turn helps to dissipate heat and maintain the proper temperature in your home or office. However, like any other mechanical part, the condenser fan motor can break down over time and require replacement.
In this article, we will provide a comprehensive guide on how to replace a condenser fan motor. We will discuss the symptoms that indicate a faulty condenser fan motor, the tools you will need, the steps to follow when replacing the motor, and some tips to help you maintain your air conditioning system. So, whether you are a DIY enthusiast or a professional HVAC technician, this guide will help you to replace the condenser fan motor quickly and efficiently.
Symptoms of a Faulty Condenser Fan Motor
Before you start replacing the condenser fan motor, it is essential to identify the symptoms that indicate a faulty motor. Some of the signs you should look out for include:
1. Noisy Fan
If you hear unusual noises coming from your outdoor unit, such as grinding, squealing, or banging sounds, it could be a sign that the fan motor is not functioning correctly. The motor may be struggling to start or run, and the noise could be due to worn-out bearings or loose parts.
2. Hot Air Blowing from Vents
If you notice that your air conditioning system is blowing warm air instead of cool air, it could be due to a faulty condenser fan motor. The motor may not be spinning fast enough or at all, resulting in inadequate cooling of the refrigerant.
Tools Required for Replacing Condenser Fan Motor
Now that you have identified the symptoms of a faulty condenser fan motor, the next step is to gather the tools you will need to replace the motor. Here are the essential tools:
1. Screwdriver Set
You will need a set of screwdrivers to remove the screws and bolts that secure the fan motor to the condenser unit. Make sure you have a variety of screwdrivers, including Phillips and flathead, to match the different screw types.
2. Pliers
You may need pliers to grip and loosen some of the components in the condenser unit. Needle-nose pliers are particularly useful for working in tight spaces.
3. Wrench Set
You may also need a wrench set to remove some of the nuts and bolts that secure the fan motor and other components to the condenser unit. Make sure you have a range of wrench sizes to match the different bolt sizes.
4. Voltage Tester
A voltage tester will help you to ensure that the electrical power to the condenser unit is switched off before you start working on the fan motor. This tool will prevent electrical shock or damage to the system.
Steps for Replacing Condenser Fan Motor
Now that you have the necessary tools, let us walk you through the steps involved in replacing the condenser fan motor. Follow these steps carefully:
Step 1: Turn off Power
Before you start working on the condenser unit, switch off the electrical power at the main circuit breaker or disconnect switch. Use a voltage tester to confirm that the power is off.
Step 2: Remove Access Panel
Locate the access panel on the condenser unit, which provides access to the fan motor and other components. Remove the screws or bolts that secure the panel and lift it off the unit.
Step 3: Disconnect Wires
Locate the wires that connect the fan motor to the condenser unit and disconnect them. You may need to use a screwdriver or pliers to loosen the wire connectors.

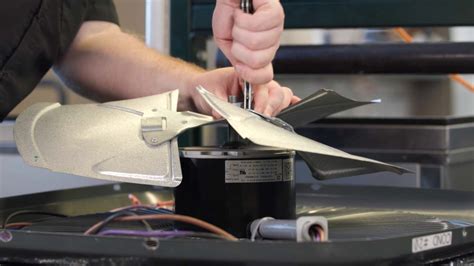

Step 4: Remove Fan Blade
Use a wrench or pliers to hold the fan blade in place while you remove the nut or bolt that secures it to the motor shaft. Once you remove the fastener, slide the fan blade off the motor shaft and set it aside.
Step 5: Remove Motor
Use a screwdriver or wrench to remove the screws or bolts that secure the fan motor to the condenser unit. Carefully lift the motor out of the unit and set it aside.
Step 6: Install New Motor
Take the new fan motor and position it in the same location where the old motor was. Use the screws or bolts to secure the motor to the condenser unit. Make sure the motor is level and properly aligned.
Step 7: Reattach Fan Blade
Slide the fan blade onto the motor shaft and use a wrench or pliers to tighten the nut or bolt that secures it in place. Make sure the blade is balanced and not wobbling.
Step 8: Reconnect Wires
Connect the wires from the new motor to the condenser unit using the wire connectors. Make sure the connections are tight and secure.
Step 9: Replace Access Panel
Reattach the access panel to the condenser unit using the screws or bolts you removed earlier. Make sure the panel is secure and flush with the unit.
Step 10: Turn on Power
Finally, switch on the electrical power to the condenser unit at the main circuit breaker or disconnect switch. Use the voltage tester to confirm that the power is flowing to the unit.
Tips for Maintaining Your Air Conditioning System
Now that you have successfully replaced the condenser fan motor, here are some tips to help you maintain your air conditioning system:
1. Change the Air Filter Regularly
The air filter in your air conditioning system plays a vital role in maintaining good air quality and preventing dust and debris from clogging the system. Make sure you change the filter regularly, ideally once every three months.
2. Clean the Condenser Coils
The condenser coils in the outdoor unit can accumulate dirt, leaves, and other debris over time, which can reduce the efficiency of the system. Use a garden hose or a specialized coil cleaner to wash the coils periodically.
3. Schedule Annual Maintenance
Hire a professional HVAC technician to inspect and maintain your air conditioning system annually. A trained technician can identify potential issues and fix them before they become costly problems.
Conclusion
Replacing a condenser fan motor may seem daunting, but with the right tools and steps, you can complete the job quickly and efficiently. Remember to identify the symptoms of a faulty motor, gather the necessary tools, and follow the steps we have outlined in this guide. Also, remember to maintain your air conditioning system regularly to ensure it operates at peak efficiency and lasts for many years.
